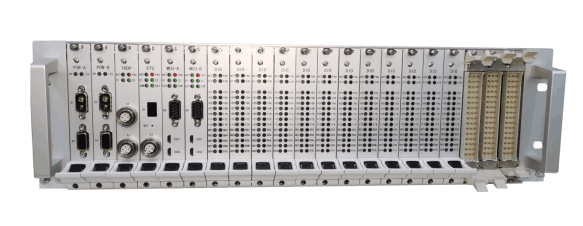

System Introduction

It adopts microcomputer control technology, collects vehicle digital signals and receives communication instructions, performs logical operations, and transmits control instructions to the input and output board through the bus channel to control and drive vehicle-related control circuits, low-voltage switch devices, microcomputer units and other external interface objects. It realizes vehicle power supply, traction, braking, door and other functions. It is used to replace the hard-wired relay circuit in train control and realize the corresponding logical control function.

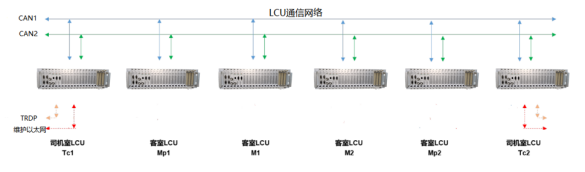

Communication Network

System Parameters

Environmental conditions:

    Ambient temperature: -25℃~70℃

    Storage temperature: -40℃~85℃

    Altitude: ≤1200m

    Humidity: ≤95%

Working parameters:

    Rated working voltage: DC110V

    Voltage range: DC77V~DC137.5V

    Power consumption: ≤65W

Product performance:

    Input to output response: ≤30ms

    Channel input current: 3~10ma

    Channel output drive current: ≤2A

System Features

1. Logic control

2. Self-diagnosis and fault protection

3. Data storage and analysis

4. Chassis address coding

5. Network communication

6. Parameter setting and software upgrade

7. Software secondary development

8. Local clock setting

9. Redundant switching control

System Features

1. LCU adopts a contactless technology solution, which can completely replace contact components such as relays in the vehicle electrical control system, and directly control the on-board equipment such as the drive train contactor and the electronic control valve.

2. Real-time monitoring and storage of vehicle operation status and equipment operation status, relevant data is transmitted to the TCMS system in real time and displayed on the DDU.

3. The redundant control system is adopted to provide a safer, more reliable and more economical solution for vehicle control.

4. IL2 certification
